The tire shredding machine is a key piece of equipment in the waste tire recycling process. It is primarily used to shred pre-treated tires (such as those with removed steel wire) into rubber blocks sized between 50–100 mm. These rubber pieces serve as ideal raw materials for further processing such as grinding, steel wire separation, and rubber powder production.
Main Functions and Applications
Efficient Shredding: Suitable for all types and sizes of tires, including car tires, truck tires, and dismantled OTR (Off-The-Road) tires.
Adjustable Output Size: Output size can be adjusted by changing the screen to meet various processing needs.
Wide Application: The shredded rubber blocks are ground and magnetically selected by rubber cracker mill to produce rubber powder or granules, which can be used to produce recycled rubber, rubber mats, runway paving materials, and so on.
Structure and Working Principle of Tyre Shredder

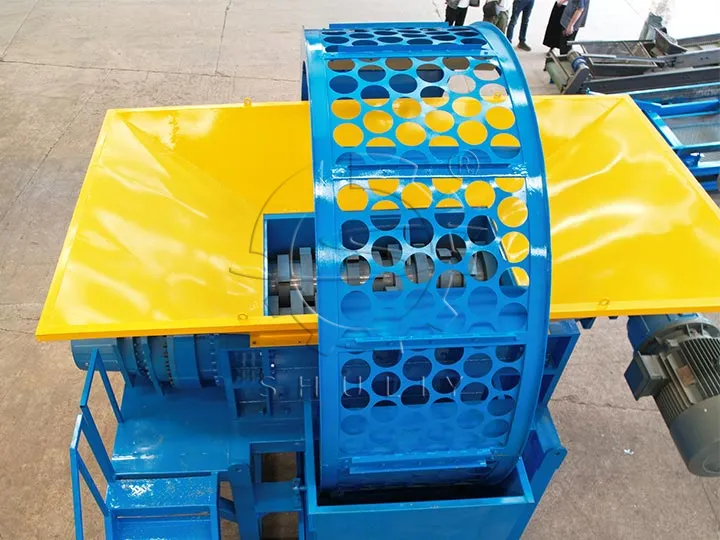

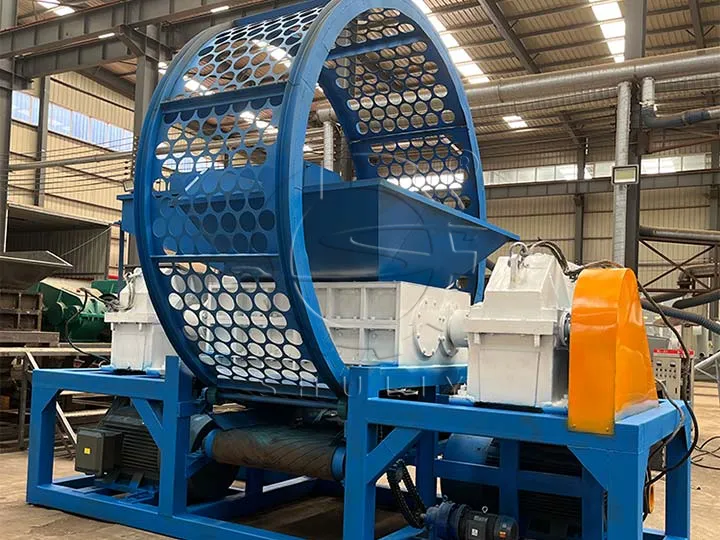

The tire shredding machine is mainly composed of a feeding hopper, motor and transmission system, shredding chamber with blades, screen system, and a solid frame.
During operation, the tires are fed into the shredding chamber where rotating blades powered by the motor tear them into smaller pieces. Rubber blocks that meet the desired size are discharged through the screen, while oversized pieces are retained for further shredding until they reach the target dimensions.

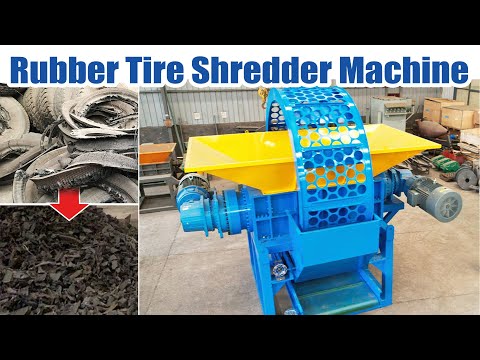

Working Video of The Tire Shredding Machine

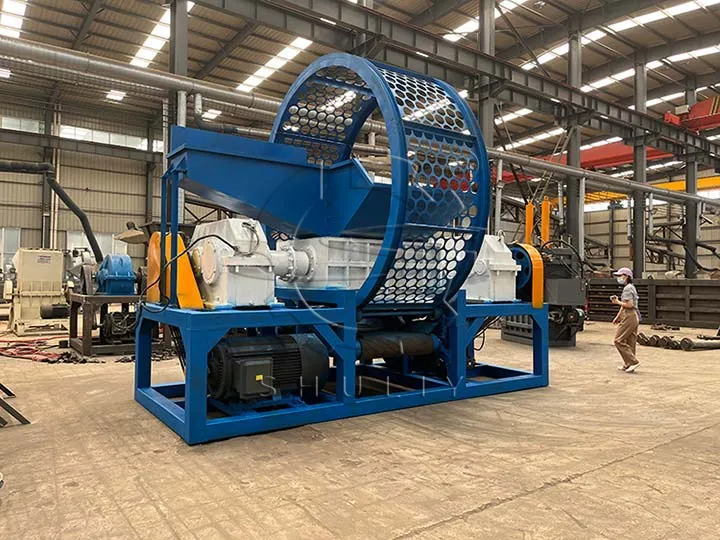

Advantages of Rubber Tire Shredder
- Wide Tire Compatibility: Capable of processing tires of various sizes, including passenger, truck, and OTR tires.
- Flexible Output Capacity: Available in models with 2t/h to 20t/h throughput to suit different production needs.
- Adjustable Output Size: Screen mesh size can be customized to control the final rubber chip size.
- Durable Blades: Equipped with wear-resistant hard alloy steel blades, ensuring long service life and high efficiency.
The Key Role of Tire Shredders in Various Recycling Lines

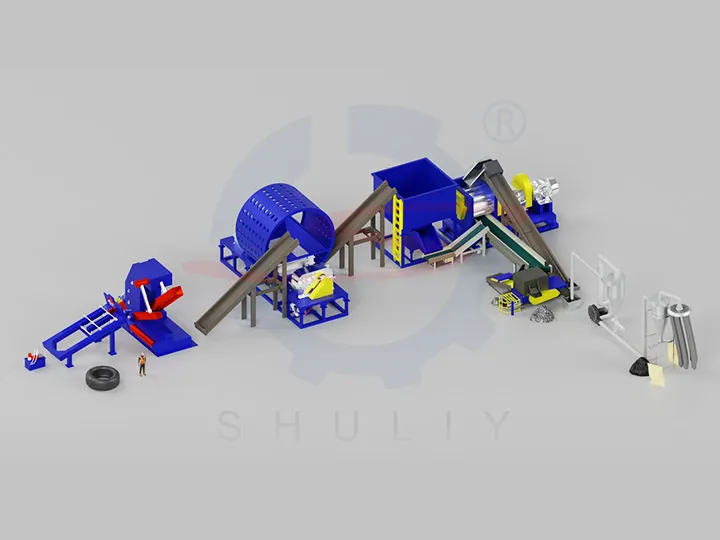

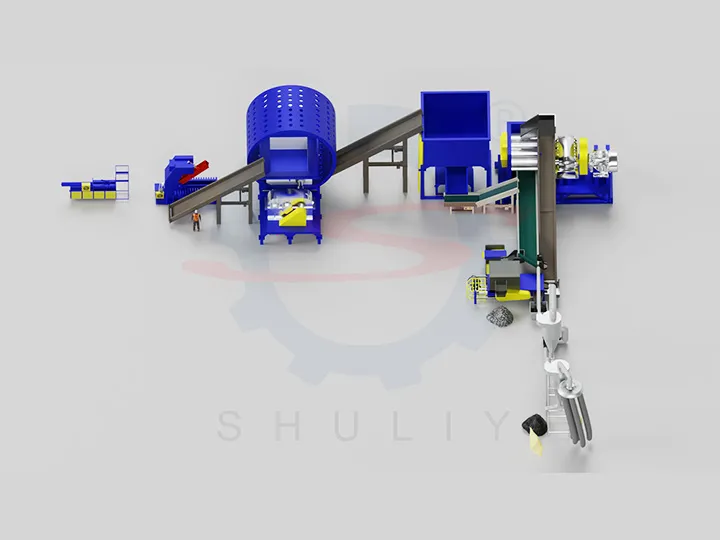

The tire shredding machine plays a vital role in both fully automatic rubber powder production lines そして OTR tire recycling systems. It efficiently handles a wide range of tires, from standard waste tires under 1200mm in diameter to large OTR tires, shredding them into rubber blocks suitable for further grinding and separation. With strong adaptability and stable processing capacity, the shredder is an essential component for achieving automated and efficient tire recycling workflows.
Parameters of The Tire Shredder Machine
We offer a range of tire shredding machine models to meet different processing needs. Depending on your raw material type, such as car tires, truck tires, or large OTR tires, we can recommend the most suitable machine model. Please refer to the table below for key technical specifications.
| モデル | 900 | 1000 | 1200 | 1500 | 1800 |
| 力 | 64.5kw | 94.5kw | 157kw | 188.5kw | 328.5kw |
| 容量 | 2 t/h | 4 t/h | 5-6 t/h | 8-10 t/h | 15-20 t/h |
| Feed size | ＜900mm | ＜1000mm | ＜1200mm | ＜1200mm | ＜1400mm |
| Output size | 50mm | 60mm | 60mm | 75mm | 100mm |
| Number of blades | 16 | 16 | 18 | 20 | 18 |
お問い合わせ
If you are looking for a high-performance, durable tire shredding machine, feel free to contact us for more technical specifications, configuration plans, and pricing.
We are ready to provide professional equipment selection advice and comprehensive after-sales support to help your tire recycling project run efficiently and successfully.
